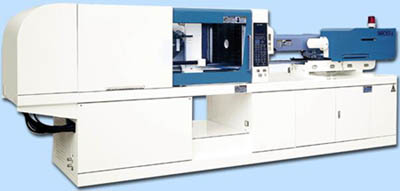

HIGH SPEED INJECTION MOLDING MACHINE

Specifications: Models LM-110CNT LM-130CNT LM-160CNT LM-200CNT LM-240CNT Injection unit Screw diameter 35 38 42 38 42 45 42 45 52 45 50 55 45 52 55 Theorectical injection volume 168 198 242 215 263 302 277 318 424 318 392 475 349 467 522 Shot weight 142 168 205 182 223 256 235 270 360 270 333 403 296 397 443 (P.S.) 5 5.9 7.2 6.4 7.8 9 8.3 9.5 12.7 9.5 11.8 14.2 10.4 14 15.6 Plasticizing capacity (P.S.) 38 45 61 45 61 76 61 76 110 76 100 120 76 105 110 (P.S.)Injection rate 90 106 129 107 131 151 134 154 206 168 208 251 168 225 251 Injection pressure 2200 1866 1527 2330 1908 1662 2333 2032 1522 2212 1789 1480 2333 1747 1562 Screw speed 0 ~ 270 0 ~ 270 0 ~ 220 0 ~ 200 0 ~ 210 Clamping unit Clamping force 110 130 160 200 240 Opening stroke 320 370 420 440 470 (Min-Max) Mold thickness (Min-Max) 140 ~ 400 150 ~ 450 200 ~ 520 200 ~ 550 200 ~ 600 Platen size (HxV) 610 x 610 660 x 660 680 x 680 780 x 680 830 x 780 Distance between tie bar (HxV) 390 x 390 430 x 430 460 x 460 510 x 480 560 x 510 Ejector force 3.3 4 4 4 4.6 Ejector stork 80 85 100 110 120 Electrical equipment Pump motor (HP / 380 / 220V) 20/56 25/68 30/80 40/105 40/105 Heat zones 4 4 4 4 4 Heater capacity (380 / 220v) 6.8/31 7.4/34 9.9/45 10.5/48 11.2/51 MAX Ampere (380 / 220v) 36/87 39/102 48/125 55/153 60/156 Machine dimension 4.1*1.05*1.7 4.5*1.1*1.74 4.9*1.15*1.76 5.2*1.3*1.85 5.4*1.3*1.9 Machine net weight 4.0 5.0 6.0 7.0 8.0
