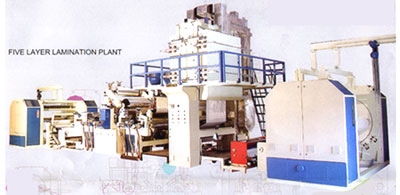

| Specifications: Five Layer Lamination Plant For Manufacturing Various Substrates Required For Multiply Packaging Requirements.
MODEL LM 80 X 2/70-C/1050 |
|
| Unwinder Turret |
Auto splicing, auto cutting change over type with auto tension control system. |
| Corona treater |
IGBT Type provided |
| Anchor Coating |
Provided |
| Screw Dia |
Extruder Screw for Layer 1 80mm Extruder Screw for Layer 2 80mm Extruder Screw for Layer 3 70mm |
| L/D Ratio |
30:1 |
| Maximum Extrusion capacity |
80 mm Screw : LD 160 Kg/hr, PP 140 Kg/hr. 70 mm Screw : LD 120 Kg/hr, PP 100 Kg/hr. |
| Die Size |
Die size (1) 1250 mm Monolayer Die Die size (2) 1250 mm Two separate layer type die. |
| Coating thickness |
10 to 100 microns. |
| Line Speed for Lamination |
150 MPM maximum |
| Winder Turret |
Auto splicing, auto cutting change over type with auto tension control system. |
| Plant operating system |
Total PLC based for program retrievals and better batch production with increased user friendliness. |
| Plant dimensions |
17 Mtr (L) X 8 Mtr (W) X 5 Mtr (H) |
| Substrates which can be Laminated |
Paper, Board, Aluminium Foil, BOPP, PET, ON & Metallised Films. |
| Applications to manufacture Multilayer Substrates for |
Ready to eat food, Cosmetics & Pharmaceuticals, Creams, Toothpaste, Ointments, Medical, Sea Worthy Export Packing, Hygroscopic Product Packing, Documents Lamination, Milk, Juice, Brick Packing, Dried and Fried food packing, Seeds, Fertilizers, Agricultural Packing, Oil & Ghee Packing. |
