Pad Printing for Precise Printing and Registration

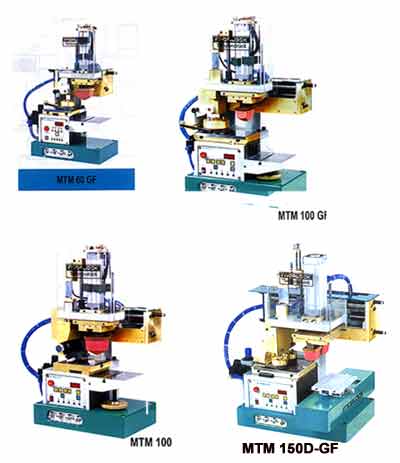

Description MTM 60GF MTM 100GF MTM 100 MTM 150 MTM 150 D-GF Cliche Size 140*70*10mm 210*100*10mm 100*100*10mm 180*150*10mm 210*70*10mm Printing image max. 55mm Ø 85mm Ø 85mm Ø 125mm Ø 55mm Ø Printing capacity max. 1800 stroke/hr 1600 stroke/hr 1600 stroke/hr 1000 stroke/hr 1000 stroke/hr ˆHeight of object max. 90mm 90mm 90mm 120mm 120mm Tampon stroke max. 80mm 100mm 100mm 125mm 125mm Force of pressure max. 450 N 580 N 580 N 1470 N 1470 N Setting Each working movement can be independently actuated by push button and mode-selector switch. Each working movement can be independently actuated by push button and mode-selector switch. Each working movement can be independently actuated by push button and mode-selector switch. Each working movement can be independently actuated by push button and mode-selector switch. Each working movement can be independently actuated by push button and mode-selector switch. Control Electro-Pneumatic Electro-Pneumatic Electro-Pneumatic Electro-Pneumatic Electro-Pneumatic Control Voltage 24 V 24 V 24 V 24 V 24 V Electric Supply 220 V, 50 Hz 220 V, 50 Hz 220 V, 50 Hz 220 V, 50 Hz 220 V, 50 Hz Current Consumption 15 W 15 W 15 W 15 W 15 W Drive Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic connection Working pressure 5-6 bar nominal width 6 mm Working pressure 5-6 bar nominal width 6 mm Working pressure 5-6 bar nominal width 6 mm Working pressure 5-6 bar nominal width 6 mm Working pressure 5-6 bar nominal width 6 mm Air consumption max. 0.33 m3/hr. 0.60 m3/hr. 0.60 m3/hr. 1.00 m3/hr 1.04 m3/hr Dimension(L* H*W) 450*610*270 mm 530*680*300 mm 530*680*300 mm 640*750*340 mm 640*750*340 mm Weight 50 kg 70 kg. 70 kg. 90 kg. 90 kg.
