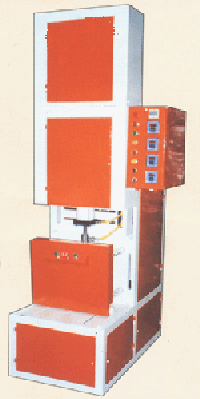

Specification:- Blowing Machine   PK-BM01 PK-BM02 PK-BM03 Product volume 30 ml to 300 ml 200 ml to 2ltr 500 ml to 6 ltr Production capacity (pc / hour) 600-800 500-600 250-500 No. of cavities 2 2 1-2 Max. height of product 200 mm 360 mm 360 mm Max. neck size of product 30 mm 53 mm 120 mm Max. mould opening 230 mm 400 mm 425 mm Tie bar distance (mm) 146 x 286 222 x 394 222 x 394 Minimum mould thickness 115 mm 115 mm 115 mm Machine dimensions (L x B x H) mm 788 x 686 x 1550 1143 x 635 x 2260 1143 x 635 x 2260 Capacity of air dryer required 35 CFM 52 CFM 52 CFM Air compressor required 10 HP-35 CFM 15 HP-52 CFM 15 HP-52 CFM Blowing air pressure required 8-10 kg/cm2 12-15 kg/cm2 12-15 kg/cm2   Preform Heating Device Specification:- Infra Red Rotary Rotary   Power consumption 3 kw 2 kw   Dimension (L x B x H) mm 2135 x 765 x 1525 724 x 724 x 762     Why Our machine ? * Easy to operate, needs no skilled personnel. * Lower power consumption. * Use of the best spares from renowned manufacturers, ensures best product quality. * Above all our fast and efficient after sales service gives us an edge over others. * We manufacture & trade in best quality preforms to give crystal clear look to the final product. * We have a wide range of preforms in different necks & weights for manufacturing of various types of PET bottles & jars.
