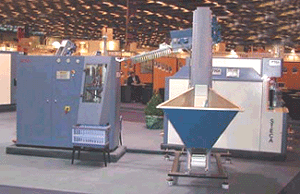

| Stretch BlowMolding Machine |
TECHNICAL CHARACTERISTICS |
Main parameters
| Production: |
around 1800 BPH |
| Volume of the blown bottles: |
0,25 - 2,0 l |
| Installed power: |
29 Kw |
| Energy consumption: |
17 Kw |
| Blowing pressure: |
15 bar/21 bar |
| Air consumption: |
120 Nm3/h or 140 Nm3/h |
| Number of cavities: |
2 |
|
Dimensions
| Height: |
1700 mm |
| Width: |
800 mm |
| Length: |
1700 mm |
| Weight: |
600 Kg |
| Number of heating zones: |
6 |
| Number of lamps per zones: |
14 |
| Control pressure: |
6/8 bar |
| Compressor: |
COMPAIR |
|
Belt feeder for preforms
| Height: |
2900 mm |
| Width: |
1250 mm |
| Length: |
1400 mm |
| Weight: |
150 Kg |
| Installed power: |
0,75 Kw |
|
Electrical details
| Voltage: |
3 x 380 V + N + T (others on request) |
| Frequency: |
50 Hz (others on request) |
| Tension of the command circuit: |
24 Volts |
|
 |
