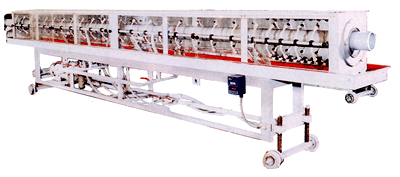

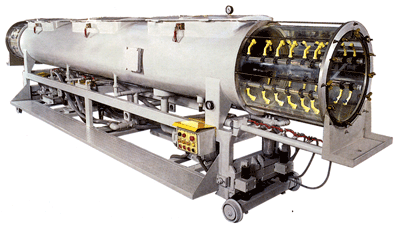

Vacuum Calibrators & Spray Baths Vacuum Calibrators * Complete 6000 mm long calibrator is under vacuum & therefore pipe formation is quick & reduces westage. * Separate circuit for vacuum generation & water spray. * Temperature, flow & level controls are provided to enhance the calibration & cooling efficiency. * The system offers superior quality production & great saving in energy. Calibrating sleeves We supplies calibrating sleeves for practically all engineering plastics: The benefits : * Outstanding thermal conductivity * High wear resistance * Good sliding properties Version I - PVC, ABS, PS 10 mm - 1000 mm; calibrating sleeve with intensive cooling Version II - HDPE 32 mm - 110 mm; calibrating sleeve with intensive cooling and adjustable water ring Version IV - PO, PB, PA up to 32 mm; disc calibrator with pre-chamber; optional; spray ring * New concept of calibration * Intensive cooling * Suitable for high speed extrusion of polyolefin pipes, specially for smaller pipes Version V- PP, MDPE/LDPE from 32 mm; calibrating sleeve with intensive cooling and adjustable sliding cooling Version VI - HDPE 110 mm - 1600 mm; calibrating sleeve with dry inlet and spray cooling Spray Baths * Intensive cooling of the pipe due to optimized positoning of the bayonet- type spray nozzles. this makes it possible to cool pipe at higher extrusion speeds unlike inadequate cooling effect of filled bath. * Open construction with acrylic covers offers ease of operation Vacuum Calibrators Type (PVC/HDPE) VI-63-6.0W VI-110-6.0W VI-250-6.0W VI-400-6.0W VI-630-6.0W Pipe Diameter (mm) Min. Max. 10 63 20 110 40 250 110 400 225 630 No. of Pumps Vacuum Cooling 1 1 1 1 2 1 2 1 2 2 Spray Baths Type (PVC/HDPE) SK-110-6.0W SK-250-6.0W SK-400-6.0W SK-630-6.0W Pipe Diameter (mm) Min. Max. 20 110 40 250 110 400 225 630 No. of Pumps * Cooling 1 1 1 2 * Optional- pumps with dual filter and piping. Water levels/flow controls.
