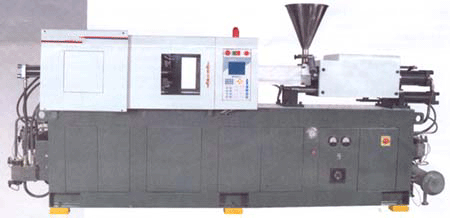

Products Metric Unit Units   Injection Unit   P-100 P-130 P-180 Screw Diameter mm 42 45 55 Injection Screw Stroke mm 200 200 240 Shot Weight(GPPS) gms 200 300 400 Injection Pressure kg/cm2 1150 1250 1100 Plasticizing Capacity gms/sec 21 25 35 Cal.Swept Volume cm3 277 318 570 No.of Heating Zone nos. 4 5 6 Clamp Unit Clamp Force ton 100 130 180 Clamp Stroke mm 350 400 450 Daylight Maximum mm 750 850 950 Mould Height Maximum mm 400 450 500 Platen Size mm 650 X 650 700 X 700 750 X 750 Distance Between Tie Rod mm 400 x 400 450 x 450 500 x 500 Ejector Stroke mm 100 100 125 General Data Electric Motor hp 15 20 30 Total Electric Power kw 17 22.5 31 Hydraulic Oil Capacity lts 250 300 350 Standard Equipments: Electrical & Control System * Micro Processor Control System. * 24 V.DC output for value solenoid. * Integrated machine operator panel. * Direct accessible menu keys. * 25 mould data strong & Precise fault & interlock indication. * Accurate temperature control with high & low setting of all zone with indicator. * Auto shot counter & cycle timer & Oil temperature indicator. Hydraulics * Proportional Electro-Hydraulic relief & Flow control value. * Full time Hydraulic Oil Filter. * Compact & Simple design. * Isolated from the base to reduce noise & vibration. Injection * Multi stage injection spped & pressure control. * Cold start prevention. * Nitride barrel/ screw. * Melt decompression Suck back provided with adjustable stroke. Clamp * CAD designed five-point double toggle mechanism. * Large tie bar distance. * Low pressure clamping for mould protection. * 5-stage clamping pressure. * Auto Die height adjustment by hydro motor. * Electrical protection. * Multi stage digital speed & pressure setting for mould clamping & opening. * Pulsating Hydraulic Ejector with adjustable speed & stroke. * Ejector can be programmed for single and multi stroke operation. * Air ejector
