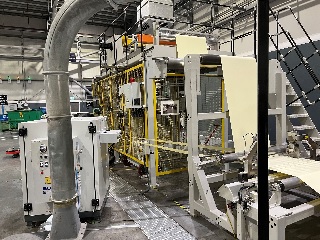

For Sale - UM - 25557 - 1200Mm Wide SML Coextrusion PP Sheet Line
Reference Numbers
UM - 25557Product
1200Mm Wide SML Coextrusion PP Sheet LineYear Of Manufacture
2007Location
UK
Model: SML-EH
WSB gravimetric feeders for all extruders with hopper loaders.
Primary extruder 105mm single screw model SML-EH-105V/33/ 220kw ac motor with invertor control. Electrically heated fan cooled barrel.
Hydraulic screen changer, melt pump nodel SML-MP 120-180.
2 x coextruder 75mm single screw model SML-EH-75V/33.
90kw AC motor with invertor control. Hydraulic screen changer and gear pump model SML MP-90/92.
Cloeren feedblock with 3 layer construction with interchangeable insert.
1300mm wide Cloeren flex lip sheet die with gap to 2mm
1400mm wide SML 3 roll vertical polishing cooling stack with 370/490/490mm diameter rolls.
Individual servo ac motors.
Each roll with pump, heater and thermoregulation system
1400mm wide haul off
1400mm x 36m SML accumulator model ACC/1400/36.
1400mm wide winder model W501/H/1400.
Max 2000mm winding diamter.
Max 1300mm winding width.
Hydraulic winding drive Ac servo drive for haul off.
3" and 6" shafts
