For Sale - UM - 20738 - 27 MM Leistritz / Gala Compounding Extrusion Line
Reference Numbers
UM - 20738Product

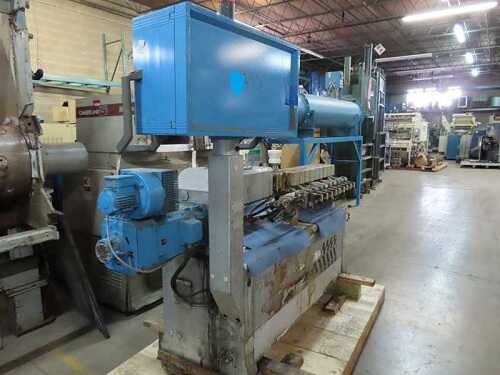

27 MM Leistritz / Gala Compounding Extrusion LineYear Of Manufacture
1997Location
USA
40:1 twin screw extruder with co-rotating inter-meshing screws.
Barrel is electrically heated, water cooled and consists of nine barrel sections.
Gearbox is direct driven by a 10.5 KW (14.3 HP) DC motor with SCR (silicone controlled rectifier) allowing for an approximate maximum screw speed of 500 RPM.
Integral movable control panel has eleven zones of temperature control and all operator controls.
Includes pre-polymer metering pump and three sets of screw shafts with loose screw elements.
Pulled from service in January of 2021.
Gala model 6PDV polymer diverter valve with 10 HP hydraulic pump.
Unit is used until the extruder is up to speed.
Gala model SLC6 underwater pelletizer with 4.3 KW (5.3 HP) spring loaded cutter, model 40TWS water tempering system with heated reservoir,
3 HP water pump, heat exchanger,
Gala model 8.1BF spin dryer with agglomerate catcher and free-standing control panel with touch screen controls.
Offered less die. Includes spare blades, heater bands, and manuals. 460V/3ph/60Hz 46 FLA operation.
