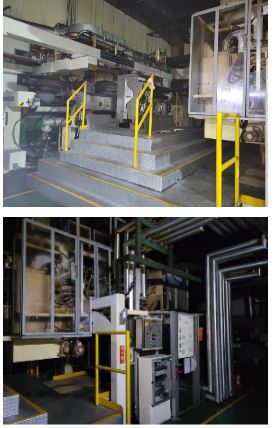

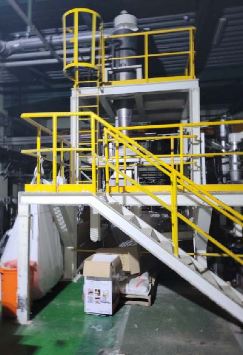

For Sale - UM - 25358 - Bruckner 3 Layer BOPP Line
Reference Numbers
UM - 25358Product
Bruckner 3 Layer BOPP LineYear Of Manufacture
2007Location
Europe
Number of Layers: 3
Film Structure: ABC
Material: BOPP and BOPA
Max Output on BOPP: 1,200 kg/h
Width: 4,200 mm
2. Extrusion System
Extruder 1 (Layer A): 120 kg/h
Extruder 2 (Layer B): 1,300 kg/h
Extruder 3 (Layer C): 120 kg/h
Head Description: 2 extrusion dies (1 for PP, 1 for PA)
Thickness Control System: Automatic thickness profile control with thickness gauges
3. Orientation & Stretching System
MDO (Machine Direction Orientation):
Stretching ratios for BOPP: 1:1 - 1:7
Stretching ratios for BOPA: 1:1 - 1:5
TDO (Transverse Direction Orientation):
Stretching ratios for BOPP: 1:8 - 1:9
Stretching ratios for BOPA: 1:2.8 - 1:4
4. Winding & Slitting System
Rewinder Width: 4,200 mm
Rewinder Type: Turret automatic winder
Max Reel Diameter: 1,000 mm
Slitter:
Make: Fujitekko
Width: 4,200 mm
Rewinder: Independent winding stations with a couple of arms, center-driven
Width Range on Winder: 325-2,000 mm
Max Reel Diameter on Rewind: 1,000 mm
Speed: 600 m/min
