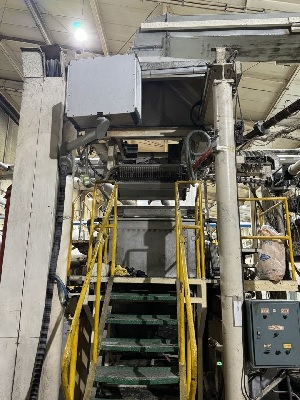

For Sale - UM - 24359 - Bruckner 3 Layer BOPP Film Extrusion Line

Specification

Reference Numbers

UM - 24359

Product

Bruckner 3 Layer BOPP Film Extrusion Line

Year Of Manufacture

1989

Location

Europe

Product Details

Number Of layers :3
Output : 1,450 kgs/h
Width (mm) : 6200

Extruder 1 Description :Output 1,450 kg/h, 150/20D (Melt) +200/20D (Cascade)

Extruder 2 Description : Output 280 kg/h,110/29D

Extruder 3 Description : Output 140 kg/h, 60/32D
Die width 883 mm
Chill roll unit: Chill roll, Air knife, film and chill roll drying system, water bath
MDO description : 10 pre-heating rolls-oil heating ; 6 stretching rolls-oil heating ; 2 annealing rolls-oil heating ; 5 nip rolls; stretching ratio 1:1-1:8 ; Aux, winder.
TDO description : Chain and chain track system F.O.K 4.4.2 ; Heating system: circulating air vai individual heating system/zone (steam heating, motors, fans, sensors, etc); Edge guide system at inlet.
Corona treatment : 3 corona treatment stations 1 up and 2 down - Double treated
Pull roll unit: Chromed Rolls chilled by water ; Edge trim on-line recycling unit; Thickness Gauge (film)
Rewinder width : 6400 mm
Slitter : INTERSLIT 6500, year 2016. Material BOPP 10-80um, Max.Webwidth - 6200mm, UnwinderDia - 1300mm, Max. rewind dia - 1250mm, grooved roller pitch of 5:5, 1.5mm groove, 3.5mm tie, depth 3mm, slittingwidth(min-max) 270-2500mm,Max. finished roll weight - 2000kg, No. of rewind stations: 12 pcs, Machine speed - 800 m/min,Trim Winder - width: 30-150mm, dia: 450-1200mm.
