For Sale - UM - 19238 - 96" Egan Single Turret Double Direction Winder
Specification
Reference Numbers
UM - 19238Product

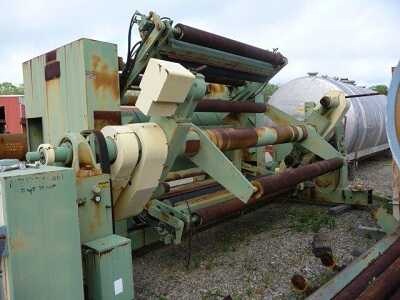

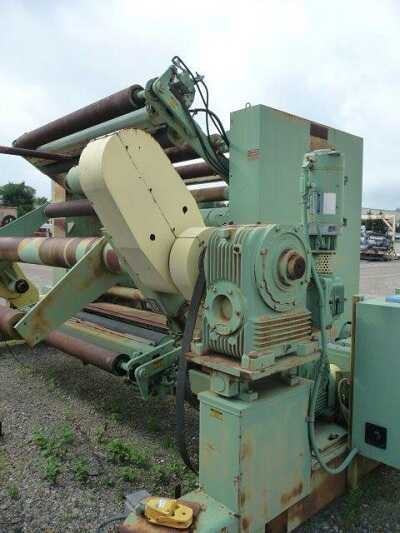

96" Egan Single Turret Double Direction WinderYear Of Manufacture
1989Location
USAProduct Details
Able to handle up to 36" diameter packages on either 3" or 6" air shafts. Unit was designed to run a 92" wide web,
4.5 to 45 mils thick at speeds from 36 to 360 FPM.
Unit has (2) Layons, (2) auto cut arms, (2) bow rolls,
Auto transfer taper/tension control,
Oscillator, power index,
Shear slitting and Reliance automate 15 control.
Each winding station is driven by a 30 HP DC motor.
SCR controls for these motors are not included.
Includes with 3" and 6" air shafts.
