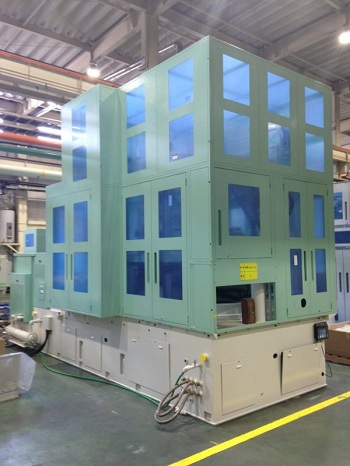

For Sale - UM - 21016 - Aoki Model SBIII-1000NL-300 PET Injection Stretch Blow Molding Machine
Reference Numbers
UM - 21016Product
Aoki Model SBIII-1000NL-300 PET Injection Stretch Blow Molding MachineYear Of Manufacture
2014Present Condition
Machine is in excellent conditionLocation
USA
Clamp tonnage (metric)- 300
Screw diameter- 84 mm
Injection capacity- 1341.1 cubic meters/shot
Blow air pressure- 30 bar
Can make wide mouth and narrow neck bottles
Number of cavities:
12 14 16 20
Neck diameter (mm):
90 60 48 40
Body diameter (mm):
100 90 75 60
Height (mm):
250 250 250 250
Capacity (liters):
1.7 1.4 1.0 .650
Offer includes resin hopper (dryer not included)
Electrical specifications- 460 volts/ 60 Hz/ 3 phase
Machine dimensions (L x W x H)- 6.38 meters x 3.19 meters x 4.26 meters
Machine weight- approximately 24,000 KG
Only 1,854 operating hours
