For Sale - UM - 33335 - Arburg 200 Ton Injection Moulding Machine

Specification

Reference Numbers

UM - 33335

Product

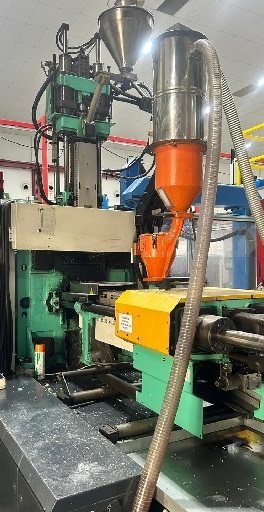

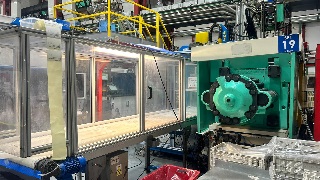

Arburg 200 Ton Injection Moulding Machine

Location

Europe
Product Details

Clamping force 200 tons (2,000 kN)
Machine configuration Bi-material / 2K injection
Main screw diameter 45 – 55 mm
Secondary screw diameter 18 – 35 mm
Shot volume (main unit) 318 – 474 cm³
Shot weight PS (main unit) 291 – 434 g
Tie-bar spacing 570 × 570 mm
Platen dimensions 795 × 795 mm
Minimum mold height 300 mm
Maximum daylight 950 mm
Opening stroke 650 mm
Injection pressure up to 2,000 bar
Ejector force 66 kN
Hydraulic pump power approx. 22 kW
Total connected load approx. 38 kW
Oil tank capacity approx. 290 L
Machine weight approx. 5,700 – 6,500 kg
Approximate dimensions 5,700 × 1,800 × 2,200 mm
