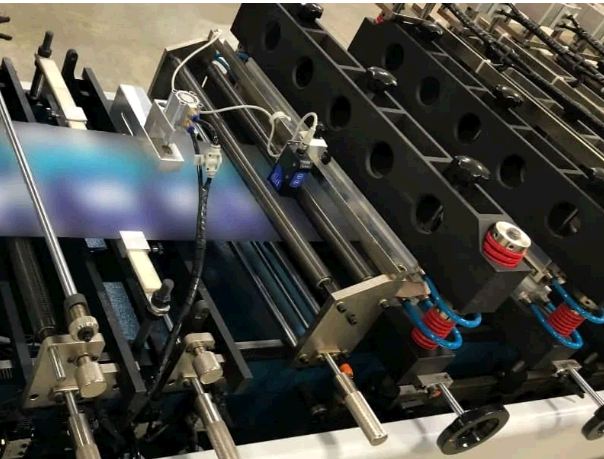

For Sale - UM - 22065 - Kunrun Pouch Bag Making Machine

Type of bag:-3 side seal
Stand up pouch
Stand up pouch with zipper
Type of seal:-Sideseal and bottomseal
Min-Max bag width:-100 - 600 mm
Min-Max bag length:-100 - 2400 mm
Max. number of lanes:-3
Max. mechanical speed:-180 m/min
Max. number of cycles (cycles/min):-120 cycles/minute
Materials:-Plastics and Paper Laminates, BOPP, CPP, PET, PE, Nylon, Aluminium
Type of take-off:-Conveyor-belt
Number and size of longitudinal sealers:-4
Number and size of cross sealers:-4
Max. unwind width:-1250 mm mm
Max. unwind reel diameter:-800 mm
Zipper possibility:-Yes
Servo:-Yes
Web guide(s):-Yes
Photocell:-Yes
Inline perforation:-Yes
Other options:-Double stand pouch with zipper possible
Manuals available:-Yes

Including:-
2 zipper sealers
Edge trim rewinder
Round corner punch system
2 lane tear notch punch system
2 ultrasonic sealers
Double cut system
Spare parts:-Lots of spare parts, including many punches, zipper cooling plates, seal bars
Dimensions:-13500 mm x 1750 mm x 2200 mm
