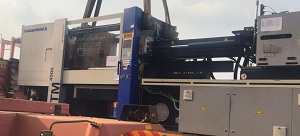

For Sale - UM - 21145 - Battenfeld 450 Ton Injection Moulding Machine

Control version :- unilog 4000 B
Operating hours :- 50.462 hrs

Clamping unit:
Clamping force:-4500 KN
Size of mould platens (h x V) :- 1120 mm X 1120 mm
Distance between tie bars (h x v) :- 800 mm x 800 mm
Mould opening :- 760 mm
Mould height min :- 300 mm
Mould height max :- 770 mm
Max daylight :- 1530 mm
Hydraulic ejector- stroke :- 250 mm
Ejector force foreword/ backward :- 87 kn

Injection unit:
Screw diameter :- 85 mm
Ls/D ratio :- 22
Injection pressure :- 1860 bar
Stroke volume :- 2412 ccm
Shot weight, PS :- 2195 g
Screw speed :- 190 1/ min
Plasticizing rate max :- 106 g/s
Nozzle pressure :- 154 kn

Electric and hydraulic equipment
Installed heating capacity :- 48,5 kw
Adjustable barrel heating zone :- 1+6
