For Sale - UM - 17260 - Sidel Model SBO 6/10 PET Stretch Blow Molding Machine

Specification

Reference Numbers

UM - 17260

Product

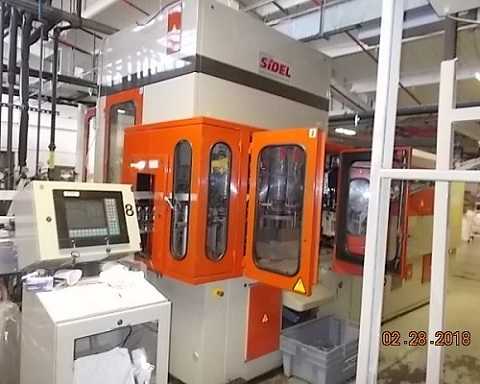

Sidel Model SBO 6/10 PET Stretch Blow Molding Machine

Year Of Manufacture

1997

Location

Europe
Product Details

Number of cavities- 6
Production capacity- approximately 7200 bottles per hour (depending on size and design of bottle)
Type mold hanger- GUPM
Oven type- linear
Maximum bottle diameter- 120 m.m.
Maximum bottle height- 388 m.m.
Maximum neck ring diameter- 51 mm
Maximum internal neck diameter- 34 mm
Maximum preform length- 210 m.m
Number of preforms in oven- 116
Offer includes the following:
Preform dumper
Preform hopper/elevator
Preform orienter
Preform feed rails
Some overhead conveyor

Features:
Quick change (shell moulds)
Linear oven
PCO 1810 28 mm neck personalization
Neck ventilation

Includes:
Sidel preform hopper/elevator
Sidel preform unscrambler & infeed rail
Sidel electrical cabinet & Pyromat
