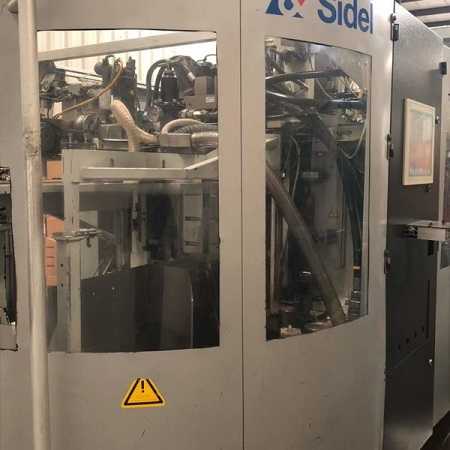

For Sale - UM - 17014 - Sidel SBO 4 Compact Pet Reheat Stretch Blow Molding Machine

Specification

Reference Numbers

UM - 17014

Product

Sidel SBO 4 Compact Pet Reheat Stretch Blow Molding Machine

Year Of Manufacture

2008

Location

USA

Product Details

Linear machine
Number of cavities- 4
Production capacity- a nominal 6,400 bottles per hour
Number of heating modules- 5
Number of heating zones per module- 9
Maximum bottle diameter- 115/130 mm
Maximum bottle volume- 2.5/3.3 liters
Maximum bottle height under neck- 348 mm
Currently has personalization parts for a 28 mm neck finish
Offer includes the following:
Preform, hopper/elevator, orienter, and feed rails
Bottle molds available for sale (the machine is currently producing a 20
ounce bottle)
