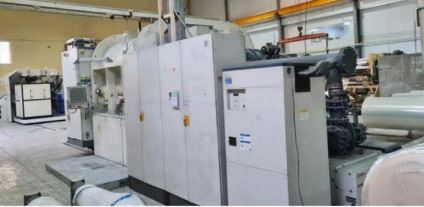

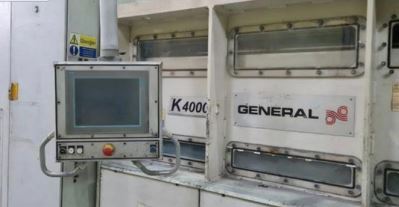

For Sale - UM - 25190 - Bobst K 4000/1650 Metallizer

Specification

Reference Numbers

UM - 25190

Product

Bobst K 4000/1650 Metallizer

Year Of Manufacture

2008

Location

-

Product Details

Model:-BOBST K4000/1650

Technical Specifications:
Web Width: 1650 mm
Material Type: BOPP 10-50 my PET 9-50my CPP 20-40my LDPE 25-50my Nylon 12-50my UPVC 20-100 my
Maximum Reel Diameter: 1000 mm
Metallizer Speed: 14 m/s

Other Specifications:
Core diameter (internal) : 152mm
Max. winding tension : 362 N
Min. winding tension : 30 N
Maximum drum tension : 869 N
Web coating :Aluminium evaporation source
Closed loop automatic deposition control system

Web treatment :
Plasma pre-treatment system
max power available 4kW/metre dependent on process conditions.
power supply frequency 40khz

Web cooling :
Chiller system
Cooling medium : water/glycol
Min temp. -15ºC
Standby temp. +20ºC

Vacuum system :
Vacuum pump set
Vacuum measurement
Precision zone seals

Process viewing :
Viewing windows
Camera and monitoring system

Control system
Microsoft Windows 2000 Workstation
PLC Siemens S7
SCADA view and run time software : Siemens WinCC

Average power consumption : 232 kW
Standby power consumption : 70 kW
