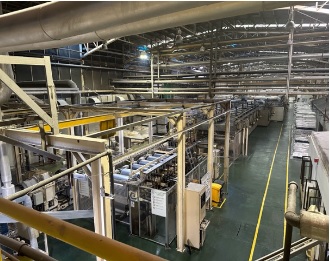

For Sale - UM - 25356 - Bruckner 3 Layer BOPP Line

Number of layers:-3
Film structure ABC
Output:-Max speed 280m/min
Max output 1800kg(h
Width (mm):-6600

Extruder 1 Description
A - Coex: SINGLE SCREW , diam 90mm, 3 components dosing system, output 125kg/h,
DC motor

Extruder 2 Description
B- Main: CASCADE EXTRUDER , melt extruder diam 200mm + metering extruder diam
250mm, 4 components dosing system, output 2000kg/h, DC motor

Extruder 3 Description
C - Coex: SINGLE SCREW , diam 90mm, 3 components dosing system, output 125kg/h,
DC motor

Head description
Make Simplas. Automatic thickness profile adjustment via 32 thermal bolts
Die width :-1025

Thickness controll system
Automatic thickness control system. Gauge bet rays
Chill roll in water bath. Gloss surface finish.

MDO description
12 x pre-heating rollers (6 chrome plated surface, 6 teflon surface). Diam of preheating rollers 614mm
6 x stretching rollers
2x Annealing rollers Rollers heated by thermal oil ( thermal oil heater included)
Drive/transmission: Distribution gearbox, cordon shaft and belts

TDO description
Pre heating section 15m length
Stretching section 6m length
Annealing +heat set section 18m length

Heating via thermal oil
Corona treatment
2 x MERO treaters

Pull roll unit
Thickness gauge, 2 x corona treatments, edge trim, In lince grinder make Hosokawa Alpine

Rewinder width:-6600mm net
Rewinder description:-Turret type

Additional Information:
Water chiller
Thermal oil heater
Main PLC Siemens S7
