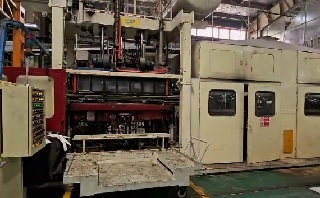

For Sale - UM - 25505 - Comi Thermoforming Machine

Materails:-HIPS and ABS
For making Refrigerator
Max. inside frame dimensions: 2005 × 905 mm
Mould base max. dimension: 2000 × 900 mm
Mould base min. dimension: 700 × 500 mm
Max. sheet dimension: 2090 × 970 mm
Min. sheet dimension: 790 × 570 mm
Mould max. height: 820 mm (570 + 250)
Moulded-piece max. height: 570 mm
Max. sheets parcel height: 1000 mm
Max. sheets support parcel height: 180 mm

Power Requirements
Upper heating power: 83.3 kW
Lower heating power: 71.3 kW
Upper preheating power: 52 kW
Lower preheating power: 46.8 kW
Oil pump motor power: 19 kW (15 + 4)
Vacuum pumps motors power: 16.5 kW (5.5 × 3)
Sheet conveyor motor power: 2.2 kW
Transport shoulders regulation motor power: 2.2 kW
Sheet pick-up motor power: 0.37 kW
Ventilators motors power: 6 kW (0.75 × 8)
Ancillary equipment max. consumption: 4.33 kW
Max. power installed: 304 kW
Used power (70%): 212 kW

Air & Vacuum
Vacuum pumps capacity: 750 mc/h (250 × 3)
Vacuum tank capacity for mould: 2000 litres
Vacuum tank capacity for bell: 2000 litres

Fluids
Oil quantity for the operation: 500 litres
Water inlet pressure: 200–300 kPa
Water inlet temperature: 20–25 °C

Pressure & Force
Exercise pneumatic pressure: 600 kPa
Exercise max. hydraulic pressure: 18 MPa
Hydraulic working pressure: 15 MPa
Lower die holder force: 1200 N/litre/cycle

Weight
Lower die holder weight: 9000 kg
Machine weight: 30,000 kg
