For Sale - UM - 19863 - DCM Lamination & Coating Machine

Specification

Reference Numbers

UM - 19863

Product

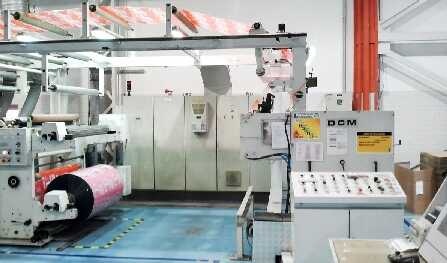

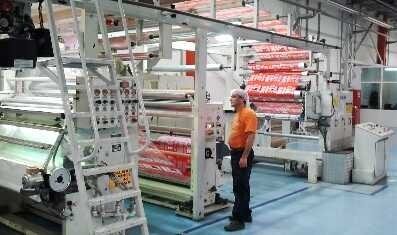

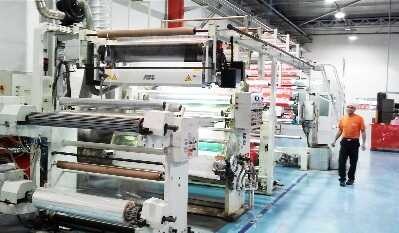

DCM Lamination & Coating Machine

Year Of Manufacture

1995

Location

Europe

Product Details

Model:- SOLV 1300
Application: Duplex lamination
Type of lamination/coating:- Solventless
Working width:- 1320 mm
Speed: 300 m/min
First unwinder type: Dual bracket
Max diameter reel unwinder: 800
Secondary unwinder type: Dual bracket
Max diameter reel unwinder: 800
Rewinder type: Turret non stop
Max diameter reel rewinder: 800
Coating unit: Solventless 5 rolls
pumping mixing unit: Dopag Variomix 2 components solventless
Corona treatment:- 1 AFS
Coating rollers
