For Sale - UM - 33399 - 3 Cavity PET Blow Moulding Machine

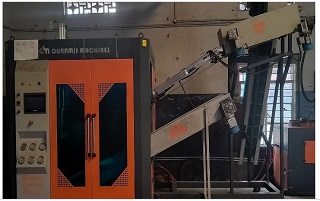

3 Cavity fully automatic PET Blow moulding
Make:-Dunamis Machine (Chennai)
Model No. :- DFA1L3C46
PET Blow moulding machine with air recovery system, Preform storage hopper, Auto-feeder and bottle carrying conveyor.
Machine suitable for blowing Alaska, ROPP, CTC & PCO preforms.
Air and water lines are push and pull system for easy maintenance.
Metal work cylinder, valves and fittinngs used for low pressure control system.
Parker valves are used for low and high pressure blowing.
Very low power infrared conveyorised preheating system for power saving
Incremental heater setting by 1% to 199% for accurate preform heat setting.
Blowing toggle system for easy and lesser mould changing time.
64 bit PLC based system with 10 inch multi colour HMI unit used for easy man machine interfacing and higher machine performance.
600 VA UPS for backup supply in case of power cut.
Production capacity is between 1500 to 2300 bottles per hour based on size and grammage.
Blowing capacity - 100 ml to 1000 ml.
Neck Dia :- 46 mm, Max container Dia :- 115 mm, Max. container height :- 250 mm
Connecting load :- 6 KW, 3 Phase only.

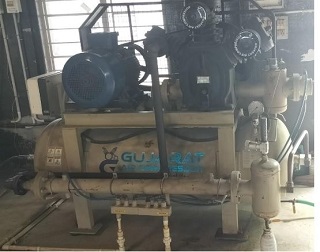

High Pressure Air Compressor
25 HP High pressure air compressor (IR TYPE) - by Gujarat Air compressor (Ahmedabad).
Three cylinder, Two stage, Water coller inner and after, Oil splash lubrication.
Free air delivery of 72 CFM, 25 kg
500 ltrs high pressure air reservoir tank with auto drain valve.

Air Colled Water Chiller
3TR Air colled water chiller - by Dunamis Machine (Chennai)
60 ltrs water tank capacity
3 phase machine

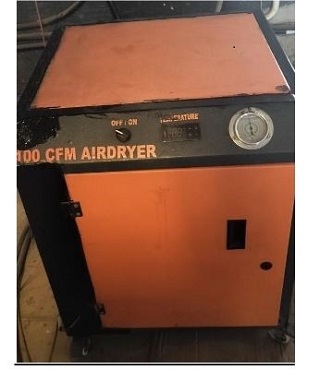

Air Dryer
100 CFM Air Dryer - by-Dunamis Machine (Chennai)
High pressure refrigerated air dryer - 40 bar
Copeland brand single phase air compressor installed inside.

Cooling Tower
20 TR Cooling Tower for water circulation in high pressure air compressor.
1 HP motor installed for water circulation.

Supporting Machineries :-
Supporting Machineries :-
1.Three Phase Air Colled Servo Stabilizer Having Capacity Of 30 Kva - I/p Voltage (295-465 V) - O/p Voltage (415 V) - By Vertex Power Solution (Chennai) - Used For Pet Blow Machine
2.Three Phase Oil Colled Servo Stabilizer Having Capacity Of 45 Kva - I/p Voltage (295-465 V) - O/p Voltage (400 V) - Serial Number - Epse 22079 - By Elite Power Solutions (Chennai) - Used For 25 Hp Compressor
