For Sale - UM - 33149 - Electronica 110 Ton Injection Moulding Machine
Specification
Reference Numbers
UM - 33149Product

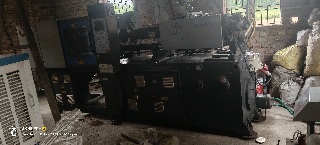

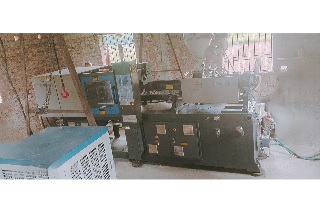

Electronica 110 Ton Injection Moulding MachineLocation
IndiaProduct Details
Machine Model - e-Profit 110-444-18
Year Of Manufacture:2015 - 16
Screw dia (mm):- 45
Screw L/D ratio :-18
Stroke volume cm3:- 258
Injection weight max (g) :-245
Injection rate (cm3/s):-120
Plasticising rate (g/s):- 21
Injection Pressure(bar):-1724
Screw rpm (Min-1 ):-231
Clamping force (KN):-1100
Mold opening stroke (mm):-340
Mold thickness Min-Max (mm):-150-380
Oil tank capacity (L):-260
Total connected Power (KW):-22.08
Machine dimensions (L x W x H):-4.2 x 1.7 x 1.9
Net weight (without oil) T:- 4.3

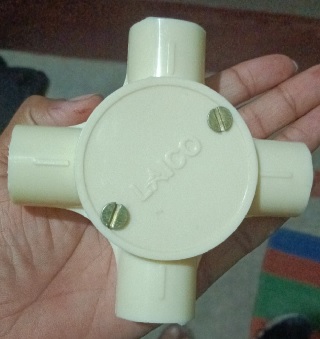

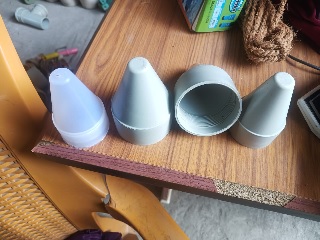

With Moulds
