Reference Numbers
UM - 21090Product

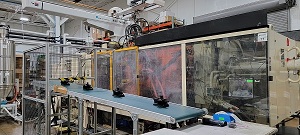

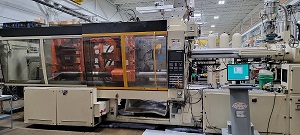

Engel 500 Ton Injection Molding MachineYear Of Manufacture
1999Location
USA
Model :- ES2000/500W
Shot Size: 50.8 oz.
Tie Bar Spacing: 34.65" x 33.07"
Platen Size: 49" x 62"
Daylight: 11.81"/ 61.50"
Clamp Stroke: 27.56"
Mold Thickness: 11.81"/33.94"
Voltage: 460/3/60
Equipped with:
CC100 Controller
Hydraulic K.O.
Core Pull
87 Zone hot tip control buld in heater control
Tie bar pull
High speed injection up to 20"/second
Engel Quick Change System
Shut-Off Nozzle (currently detached)
Valve Gate Control
Current screw is a barrier screw
