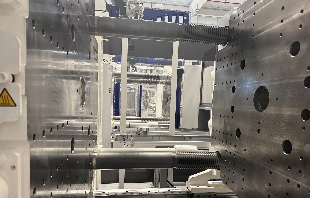

For Sale - UM - 33357 - Engel 650 Ton Injection Moulding Machine

Model:- Duo 3660/650 tech
Control: CC300
Integrated robot: ENGEL VIPER 40
Clamping force: 650 t
Injection unit: 810
Screw diameter: 80 mm
Possible screw diameters: 55 / 60 / 70 / 80 mm
Shot volume: 1810 cm³
Injection capacity: 1660 g PS
Injection pressure: 1800 bar (max. 2000 bar)
Injection speed: 493 cm³/s
Screw stroke: 510 mm
Screw torque: 3600 Nm
Max. screw speed: 210 rpm
Plasticising rate: up to 118 g/s
Nozzle orifice: 12 mm
Tie bar distance (H x V): 1110 x 960 mm
Platen size (H x V): 1510 x 1440 mm
Opening stroke: 1800 mm
Max. daylight opening: 1950 mm
Mould height min./max.: 350 - 1200 mm
Dry cycle: 2.8 s
Ejector stroke: 250 mm
Ejector force: 105 / 51 kN
Installed drive power: 74 kW
Oil tank capacity: 750 l
Equipment:
ENGEL VIPER 40 integrated robot

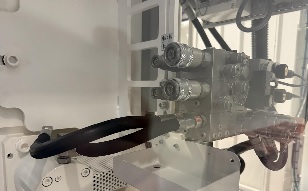

2-fold hydraulic core pull on moving platen
Tool heating with 32 control circuits
Hydraulic machine
