For Sale - UM - 27685 - Engel Injection Moulding Machine
Reference Numbers
UM - 27685Product
Engel Injection Moulding MachineLocation
Europe

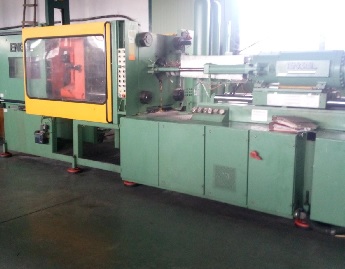

Engel ES 3500/650, CC90, With robot
Year: 1991 (February 2025 new pump installed)
Closing force: 650 tons
Beam spacing: 900/900 mm
Form height: 400 mm (min.)/920 mm (max.)
Opening stroke: 900 mm (max.)
Ejector stroke: 250 mm
Screw diameter: 80 mm
Injection weight: 1765 g/hp
Injection volume: 1960 cm^3
Machine 2:

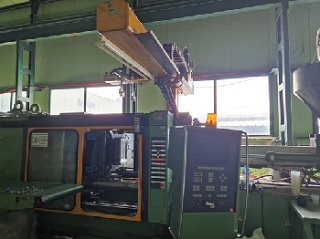

Engel ES 700/300, CC 90, with hydraulic accumulators (storage)
Year: 1989
Closing force: 300 tons
Beam spacing: 635/635 mm
Form height: 200 mm (min.)/660 mm (max.)
Opening stroke: 600 mm
Ejector stroke: 200 mm
Screw diameter: 60 mm
Injection volume: 735 cm^3
Injection mold 1:

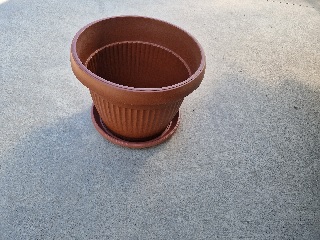

Description: Used injection mold for flowerpot including saucer (Ø 45 cm)
Cavity: 1
Closing force:
Flowerpot: 650 t
Coaster: 280 t
Dimensions:
Ø inside top: 45 cm
Outside diameter: 50 cm
Height: 38 cm
Injection mold 2:

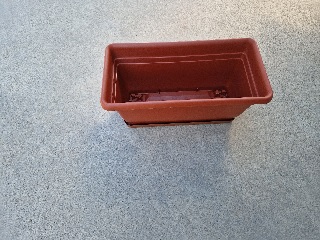

Description: Used injection mold for flowerbed including saucer
Cavity: 1
Weight:
Flowerbed: 1200 g
Coaster: 200 g
Closing force: 280 tons
Dimensions:LxWxH inside: 55x25x27 cm ,LxWxH outside: 60/30/27 cm
