For Sale - UM - 18520 - Tecom Monolayer Blown Film Extrusion Line
Reference Numbers
UM - 18520Product
Tecom Monolayer Blown Film Extrusion LineYear Of Manufacture
2007Location
Europe
Model: EXK75B
Number of layers: 1
Material: LDPE, HDPE, BIO
Film Width: 1700
Screw diam: 75mm

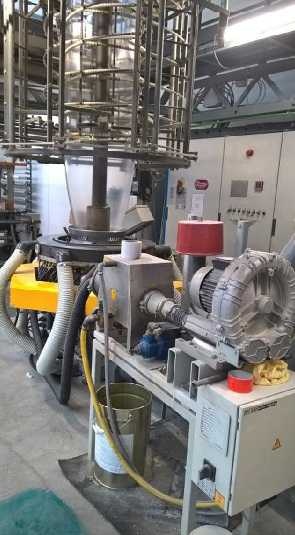

Description: EXK 75B/30D type extruder - complete with bimetallic cylinder, Gravimetric Dosing unit Plastcontrol GDC N 4100 AS + 2 ,for management and control of n. 3 hoppers, reading and automatic control of the extrusion profile with PRO-JET system with data displayed on a 10.4 "TFT screen and programming keypad. kw 118 (160 hp) and inverter.

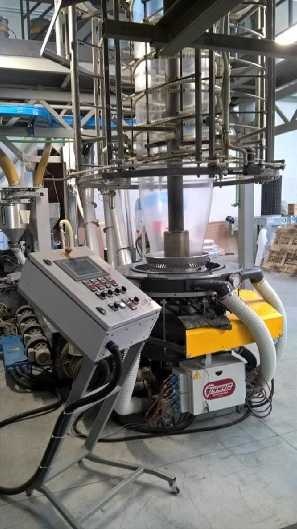

Head description: Fixed Die head SFK 18/30 with IBC and inserts for HDPE and LDPE .Die Gap 1,4 mm. Cooling ring type KRA 35
Die diam (mm): 250 mm

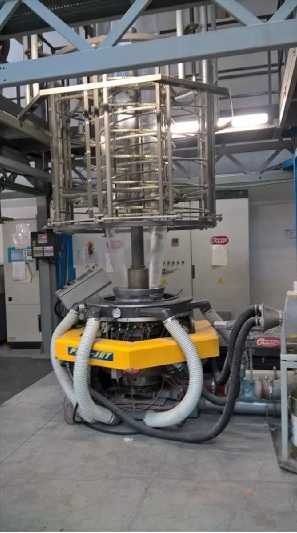

Bubble cage: RA 2000/8/6 CCN
Panel for gussets:
Take off unit: Rotating haul off RTO 2 mm. 1700
Web guide:

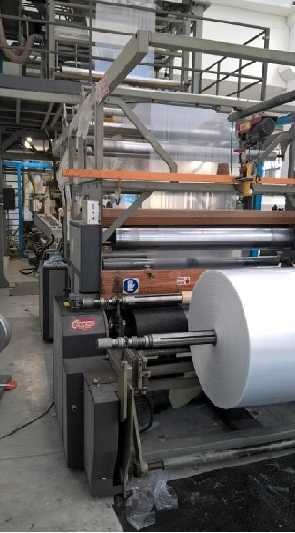

Rewinder Type: Double
Rewinder description: Contact automatic rewinder
Additional informations: Calibration basket
Tower
