Reference Numbers
UM - 17065Product

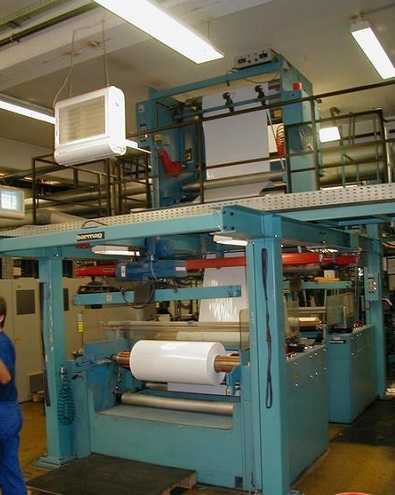

Barmag 5 Layer Blown Film Extrusion LineYear Of Manufacture
1992Location
Europe
Material: Barrier (symetric and asymetric) and PE film
Film Width: 1450
Output (Kg/h): 300 kg/h
Screw diam: 75mm

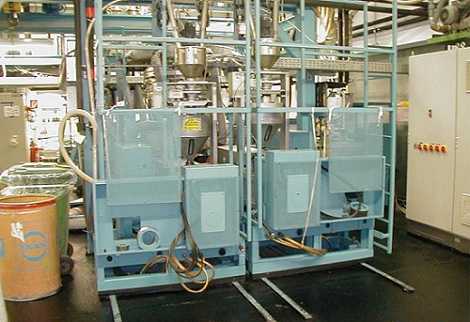

Description: L/D27, gravimetric doser,70KW motor
Screw diam: 60mm
Description: L/D27, gravimetric doser,49KW motor
Screw diam: 45mm
Description: L/D27, gravimetric doser,28KW motor
Screw diam: 45mm
Description: L/D27, gravimetric doser,28KW motor
Screw diam: 60mm
Description: L/D27, gravimetric doser,28KW motor
Head description: Typ BFW4/500X, Cooling ring Mod UF1.
Die range 320-600mm,
Die diam (mm): 360, 440, 460, 500, 550
Bubble cage: BFA1 - EL
Take off unit: reel width 1500mm. speed 5-70m/min,
Calender Chrome roller+rubber coated roller
Corona treatment: Yes, AFS
Web guide: Yes, BFA1

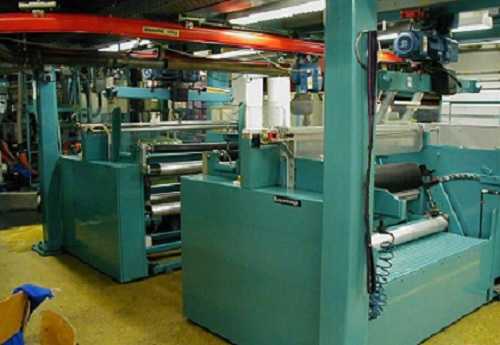

Rewinder Type: Double, back to back
Rewinder max reel diameter: 800mm
Rewinder description: Drive: contact and center (gap)
Additional informations: Shaft core - 76 mm
Water bath for tension relaxation
Electronic measure of diameter
