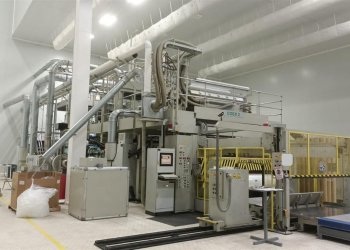

For Sale - UM - 22840 - Colines 7 Layer Cast Film Line
Reference Numbers
UM - 22840Product
Colines 7 Layer Cast Film LineYear Of Manufacture
2004Location
Europe
Number of layers:-7
Overhaul/renovation:-overhauled in 2016, wear parts were changed. Lowe hours of use thereafter
Film structure:-ABCDEFG
Material:-BARRIER FILM CPP
Film width (mm):-2100
Extruder 1 Layer ref: A
Screw diam:-100 mm L/D 30
Description:-AC motor 125 kW - Gravimetric dosing unit
Extruder 2 Layer ref: B
Screw diam:-50 mm , L/D 30
Description:-AC motor 34 kW Gravimetric doser 1 comp
Extruder 3 Layer ref: C
Screw diam:-60 mm , L/D 30
Description:-AC Motor 60 kW , Gravimetric dosing unit 2 comp
Extruder 4 Layer ref: D
Screw diam:-60 mm , L/D 30
Description:-AC motor 34 kW Gravimetric doser 1 comp
Extruder 5 Layer ref: E
Screw diam:-60 mm , L/D 30
Description:-AC motor 34 kW àGravimetric dosing unit 2 comp
Extruder 6 Layer ref: F
Screw diam:-50 , L/D 30
Description:-AC motor 34 kW , Gravimetric doser 1 comp
Extruder 7 Layer ref: G
Screw diam:-80 mm L/D30
Description:-AC motor 85 kW
Head description:-CLOEREN-USA with feed block CLOEREN US ABCDEFG
Die width (mm):-2800 mm
Chill roll unit:-2 calenders 800 mm and 450 mm , width 2900 mm
Thickness controll system
Rewinder max reel diameter (mm):-1000
