For Sale - UM - 19032 - Gloucester 5 Layer Cast Film Extrusion Line

Number of layers :- 5
Overhaul/renovation:- renovation in 2010
Film structure:- BACAB
Material CPP - CPE
Film width (mm):- 1800
Extruder 1 Layer ref:- B
Screw diam:- 90mm

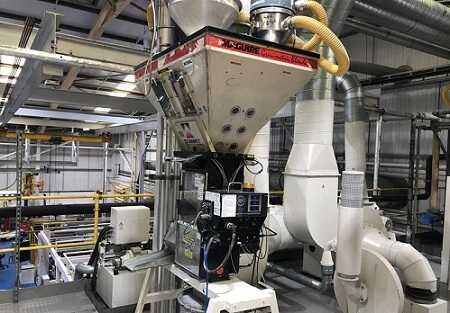

Description:- L/D 30 , Mcguire 4 comp gravimetric doser
Extruder 2 Layer ref:- A
Screw diam:- 150mm
Description:- L/D 30, Gravimetric Hydreclaim six component continuous blender and doser. Edge re-feeding
Extruder 3 Layer ref:- C
Screw diam:- 90mm
Description:- L/D 30 , Mcguire 4 comp gravimetric doser

Head description Cloeren Epoch, internal deckling,
Flex lip with90 thermal bolts for auto thickness control,
Pinning for the extruded material is by an Eltex electrostatic pinner system and a Cloeren vacuum box with a Cloeren airknife

Die width (mm):- 2300

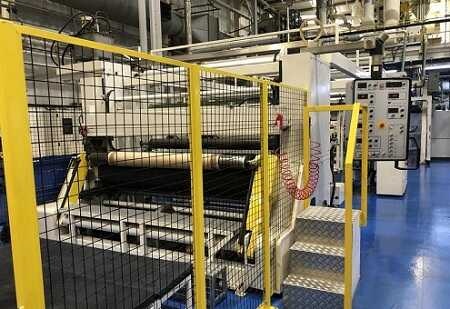

Chill roll unit Two roll system with cast roll and cooling roll both roller are 500mm diameter. Cast roll is a Satex 12 textured design and cooling roll is bright chrome finished.

Thickness controll system:- Automatic. Gauge Thermofisher Beta gauge fitted 2018 with a Krypton 85 source

Corona treatment:- Sherman 2 side with ceramic process roller
Web guide:- oscillating frame
Rewinder max reel diameter (mm):- 1000

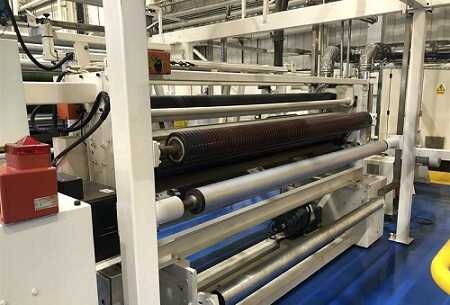

Rewinder description Turret, Wintech, contact and gap winding
