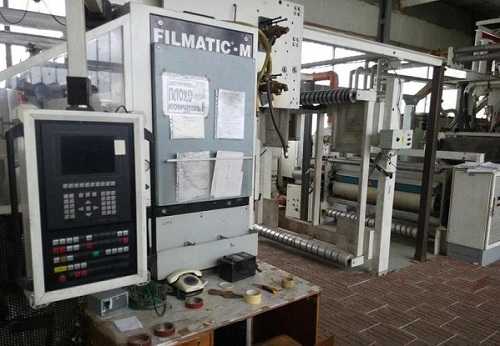

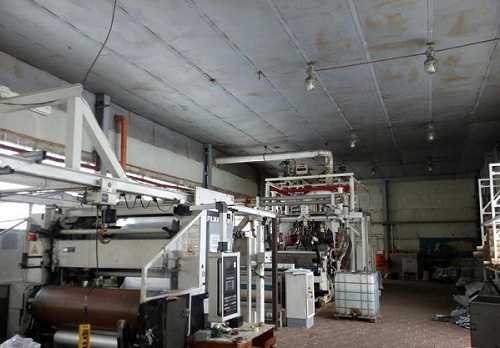

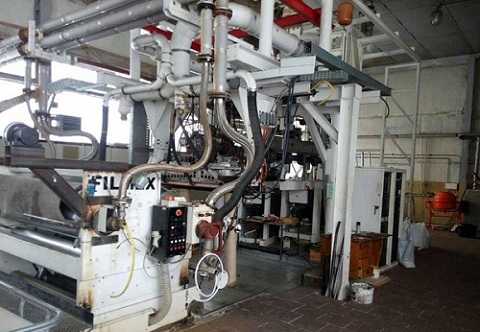

For Sale - UM - 17524 - Windmoeller Filmatic 3 Layer Cast Film Extrusion Line
Specification
Reference Numbers
UM - 17524Product
Windmoeller Filmatic 3 Layer Cast Film Extrusion LineYear Of Manufacture
1998Location
EuropeProduct Details
Film structure:- 7 sets of plates for changing layer distribution through the feedblock
Material:- CPP, PA, LDPE
Film width (mm):- 1600
Speed (m/min):- 200
Extruder 1 Layer ref:- A
Screw diam:- 90
Extruder 2 Layer ref:- B
Screw diam:- 70
Extruder 3 Layer ref:- C
Screw diam:- 50
Head description :- Automatic die with 58 bolts
Chill roll unit
Corona treatment:- Softal
Web guide
Rewinder description:- Automatic non stop on ID 76 and 152 mm cores
Additional information:- Suction and winder for side trims Thickness range 15-280 my
