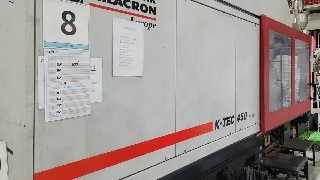

For Sale - UM - 24995 - Ferromatik 450 Ton Injection Moulding Machine
Specification
Reference Numbers
UM - 24995Product
Ferromatik 450 Ton Injection Moulding MachineYear Of Manufacture
2016Location
EuropeProduct Details
Model:-K-TEC 450 S
Air Valves 4
Clamping force:-4.500 kN
Distance between tie-bars (h x v):-825 × 825 mm
Dry cycle time 3 - 578 sec/mm
Ejector stroke / force max.:-85 / 200 mm / kN
Injection pressure:-1.921 bar
Injection rate:-2.850 cm³/s
Injection volume:-2.290 cm³
Mold opening force:-185 kN
Mould height max:-1.420 mm
Mould height min:-420 mm
Mould opening stroke max:-1.000 mm
Operating hours:-100.700
Platen size (h x v):-1.195 x 1.267 mm
Power: installed max;-90 + 50,6 kW
Screw diameter:-90 mm
Screw L/D ratio:-20
Shot weight max:-2.084 g
Weight:-30.000 kg
