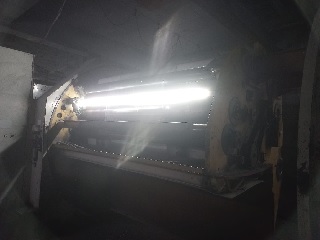

For Sale - UM - 25225 - General Equipment 2050 MM Vacuum Metallizer

Web Width: 2050mm
Material Type: PET BOPP, CPP, PAPER
Film Speed: 400 to 600m/min
Other specs: Materials and Thickness
BOPP: 8 – 80 micron
PET: 9 to 50 micron
CPP: 20 – 50 micron
PAPER: 40 – 80 gsm

Maximum width 2050 mm
Minimum width 900 mm

Winding specification
Maximum winding tension: 450 N
Minimum winding tension: 30N
Maximum drum tension: 1080 N

Roll specification
Maximum diameter unwinder 1000 mm
Maximum diameter rewinder 1000 mm
Core diameter (internal) 152 mm
Evaporation Boats : 150mm x 30mm x 10mm
Pumping Systems: Quantity and Capacity

Evaporation Zone
diffusion pumps Varian – 2 nos @ 50,000 ltr / sec
Rotary pumps Kinney – 1 no @ 505 cu meter / hr
Boosters pumps Arzon @ 3900 cu meter / hr
Polycolds – 1 nos PFC 1101 HC @ 200,000 ltr / sec

Winding Zone
Booster Pump – 1 Arzon @ 3900 cu meter / hr, 2 Arzon @ 13000 cu meter / hr Rotary Pump – 2 Kinney @ 505 cu meter / hr
Polycold -1 nos PFC1101 HC @ 200,000 ltr / sec
Average power consumption 250 kW
Stand by power consumption 90 kW

Refurbished Details:
1) Internal Chiller needs repair. Water from external chillers
2) New indigenous Wire feeding system for stepper motor drives

Machine Manual
Backup Software
Machine Layout
Electrical/Mechanical Drg
