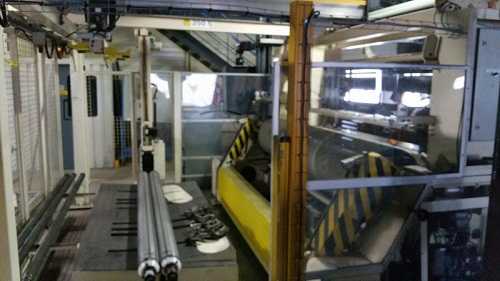

For Sale - UM - 18082 - Gloucester 3 Layer Blown Film Plant

Specification

Reference Numbers

UM - 18082

Product

Gloucester 3 Layer Blown Film Plant

Location

USA

Product Details

Die 29.5" (750 mm), oscillating 360°
IBC Battenfeld
Plast control thickness control
1 x 120 mm (30:1 ) / 2 x 80 mm (25:1)
Dosing each 5 Components (TSM)
Calibration basked
Primary nip and a-frame
Width measurement system (TSM)
Web guider BST
1 station corona (2 sided) Shermann
Secondary nip winder (wintech)
Double station 3000 mm surface/center winder (wintech)
Trim removal system
Automatic roll and shaft handling system for winders (wintech)
Anti-dusting system
Raw material vacuum transport system (lanco)
6 x 25m 3 each Silos (zeppelin)
Materials: LDPE/LLDPE/EVA
Thickness: 30 - 100 microns
Output max.: 750 kg/h (1650 Lbs)
Working width winder: 3000 mm
