For Sale - UM - 17923 - Vecoplan Single Shaft Shredder

Specification

Reference Numbers

UM - 17923

Product

Vecoplan Single Shaft Shredder

Year Of Manufacture

2005

Location

Europe
Product Details

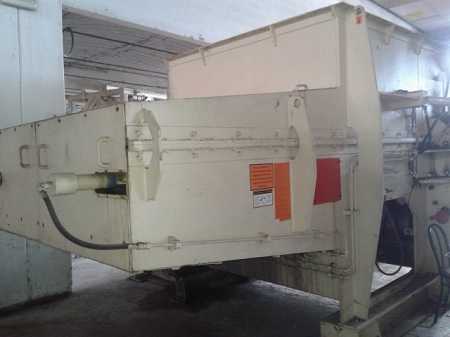

Shredder Vecoplan VAZ 200- totally reconditioned
Sturdy heavy duty steel structure
V rotor 2.000 mm wide, 500 mm diam., 145 rpm
N.62 blades size 60×60 mm
110 KW / 400 V /50 Hz 3PH motor
New gearbox
Hydraulic pushing unit
Hydraulic power station
Loading hopper with level sensor
Fitted with 30 mm hole grid
Electric cabinet
Dimensions : LxWxH 4.640 x 3.690 x 2.375 mm
Total weight about 16 Ton
The machine is offered totally reconditioned
Including extraction belt lined in PVC
Size 700 mm W x 7.000 mm.long
1.680 mm (adjustable) discharging height
CE mark, Declaration of conformity, user’s manual and electric drawings
Average throughput 1.500/2.500 kg/h depending on materials
Inspection possible in 11020 isspgne
