For Sale - UM - 33361 - Haitian 67 Ton Injection Moulding Machine

Specification

Reference Numbers

UM - 33361

Product

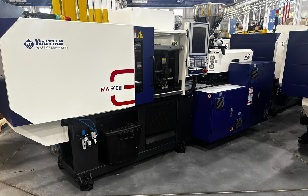

Haitian 67 Ton Injection Moulding Machine

Year Of Manufacture

2023

Location

USA
Product Details

Model:-MAIII 600/280
US Tonnage:-67
Shot Size (oz. of PS) 6.07
Screw Diameter:-40 mm
Platen Size (in.):-18.5 x 18.5
Tiebar Spacing (HxV) in:-12.2 x 12.2
Max Mold Height (in.):-12.99
Min Mold Height (in.):-4.72
Opening Stroke (in.):-10.63
Open Daylight (in.):-23.62
Ejector Stroke (in.):-2.76
Voltage 460V/3P/60Hz
