For Sale - UM - 21149 - Illig Automatic Pressure-Forming Machine For Cups With Stacking System

Specification

Reference Numbers

UM - 21149

Product

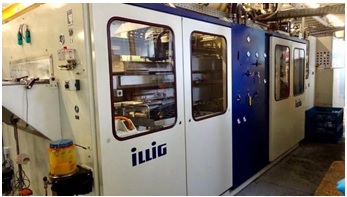

Illig Automatic Pressure-Forming Machine For Cups With Stacking System

Year Of Manufacture

1998

Location

Europe

Product Details

Model :- RDM 75K
Refurbished in 2015
Stacking system PH 75
Forming area up to depth of draw 150:- max. 700 x 450 mm
Height of formed part negative:- max 150 mm
Height of formed part positive:- max 30 mm
Material width:-max 750 mm
Index length:- max 300 mm
Mold closing force:- max 250 kN
Maximum speed:- 40 cycles/minute
