For Sale - UM - 19136 - Krauss Maffei 800 Ton MC Injection Moulding Machine

Specification

Reference Numbers

UM - 19136

Product

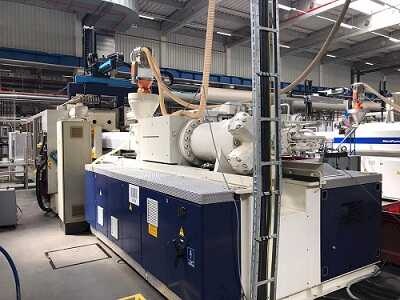

Krauss Maffei 800 Ton MC Injection Moulding Machine

Year Of Manufacture

1999

Location

USA

Product Details

Screw diameter:- 130 mm
Shot weight:- 4395 g
Stroke volume:- 4830 cm³
Injection pressure:- 1656 bar
Clamping force:- 8000 kn
Max open daylight:- 2000 mm
Distance between bars:- 1120x1000 mm
Mould height max:- 600-1100 mm
Size of mold platens:- 1600/1530 mm
Ejector stroke:- 250 mm
Main electronic connection:- 400 v -50 hz
It has a working record of 81856 production hours
