For Sale - UM - 22486 - Toshiba 500 Electric Injection Moulding Machine

Specification

Reference Numbers

UM - 22486

Product

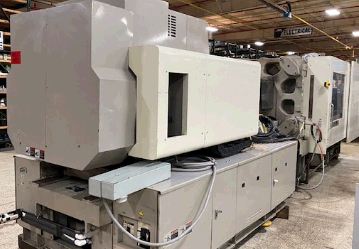

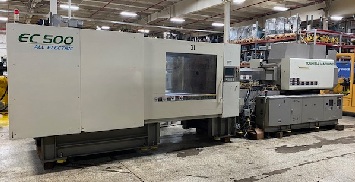

Toshiba 500 Electric Injection Moulding Machine

Year Of Manufacture

2001

Location

USA

Product Details

Capacity:-500 Ton
Shot Size:-44 oz
Tie Bar Spacing:-34.2" x 31.9"
Platen Size:-48.4" x 45.7"
Min Daylight:-13.8"
Max Daylight:-61"
Min /Max Mold Height:-13.8"/29.5"
Clamp Stroke:-32"
Ejector Stroke:-7.1"
Control Injectvisor V21
Machine Dimensions:-28.6' x 7' x 8.3'
Machine Weight:-60,500 Lbs
Air Blow
