For Sale - UM - 17950 - Engel 1300 Ton Injection Moulding Machine

Specification

Reference Numbers

UM - 17950

Product

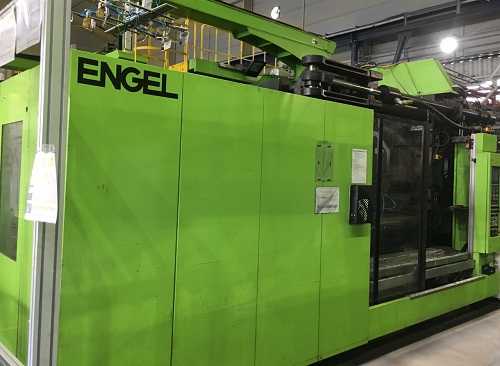

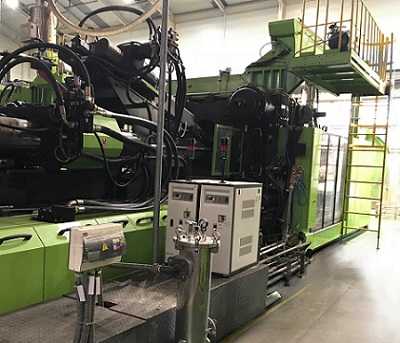

Engel 1300 Ton Injection Moulding Machine

Year Of Manufacture

2006

Location

Europe

Product Details

Hours: 66244
Heating zones: 48 heating zones
12 pneumatic cascades(nozzles)
2 cores (in system 3)
Extension platens (possibility of using smaller moulds)
Material: PC+ABS
Robot star YUDO2000-M
Pressure boosting function

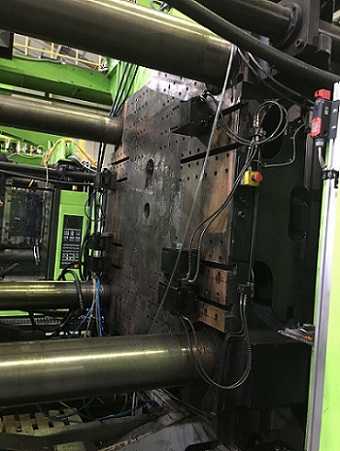

Platen size (measured manually): 220 x 197,5 cm
Tie bars distance HxW : 127,5 x 153 cm (measured by hands may differ in few millimeters) needs to be checked with documentation
Tie bar dia: 250mm
Screw dia 1: 105 mm
Screw dia 2: 80 mm
Gasket changed

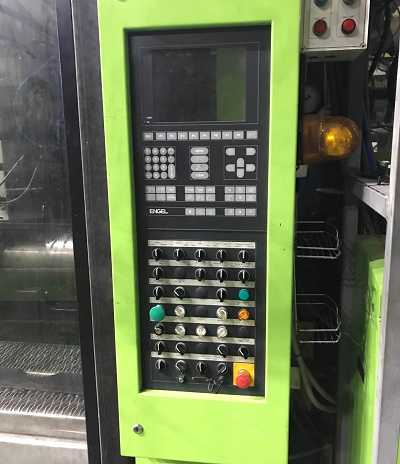

Control: CC100
