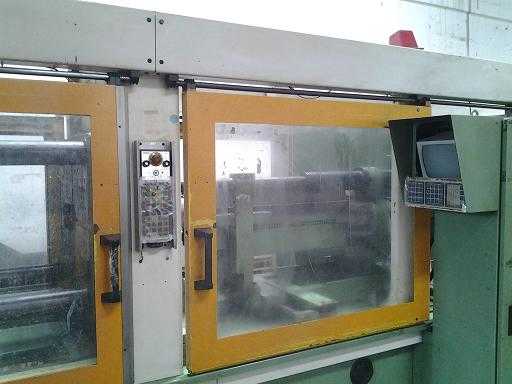

For Sale - UM - 17062 - Arburg 200 Ton Allrounder Injection Molding Machine
Reference Numbers
UM - 17062Product
Arburg 200 Ton Allrounder Injection Molding MachineYear Of Manufacture
1993Location
Maharashtra
Control: Dialogica
Clamping Force: 200 Ton
Operating Voltage: 415 V 3-50 Hz
Control Voltage: 220 V 50 Hz
Total Connected Load: 83.0 kW
Mould protection force: 80 KN
Open stroke (adjustable) max.: 650 mm
Mould mounting height: min. 250 mm
Daylight between platens: max. 900 mm
Distance between tie-bars: 470 x 470 mm
Platen dimensions (horz. x vert.): 715 x 715 mm
Mould diameter: max. 701 mm
Weight of mov. Mould half: max 1000 kg
Ejector force: max. 65 kN
Ejector stroke: max 225 min
Screw diameter: 50 mm
Screw Length: 20 L/D
Screw stroke max. 180 mm
Dosage Volume: 353 cm³
Shot weight: max g/ps 297
Injection Pressure: 1900 bar
Injection flow rate: max 195 cm3 /s
Back Pressure: 350 bar
Circumferential Screw Speed: 55 m/min.
Screw Torque: 900 Nm
Nozzle Contact Force: 80 kN
Nozzle Stroke: 565 mm
Cylinder And Nozzle Heating: 12,6 kW
Number of Heating Zones: 6 + 1
Volume of Feed Hopper: 50
Variable Horz. Injection Position Max.: 220 mm
Pump motor: 1 x 22 kW
Dry cycle times: 3.6 s
Total connected load: 35 kW
Weight: 7600 kgs.
