For Sale - UM - 18775 - Arburg 200 Ton Injection Moulding Machine

Specification

Reference Numbers

UM - 18775

Product

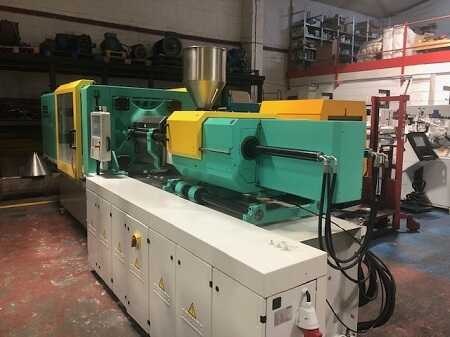

Arburg 200 Ton Injection Moulding Machine

Year Of Manufacture

2008

Location

Europe

Product Details

Clamping force: 200 ton
Screw diameter: 60 mm
Shot weight (P/S): 607 g
Injection volume: 664 cm3
Preassure: 2000 bar
Platen sizes: 795x795 mm
Distance between tie bars: 570x570 mm
Min. mould height: 300 mm
Mould oppening stroke: 650 mm
Max daylight: 950 mm
Ejector stroke: 225 mm
Controls: Selogica touch screen
Core pulling: 1
Machine dimensions (LxWxH): 6000x1600x2000 mm
Weight: 8000 kg
