For Sale - UM - 17672 - Battenfeld 270 Ton Injection Moulding Machine

Specification

Reference Numbers

UM - 17672

Product

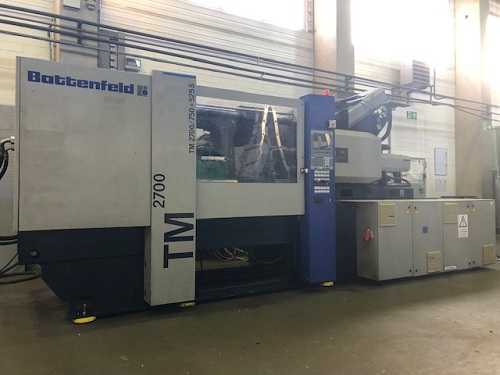

Battenfeld 270 Ton Injection Moulding Machine

Year Of Manufacture

2003

Location

Europe

Product Details

Screw size:- 45 mm
Injection shot weight in Polysterol:- 326 g
Clamping force:- 2700 kN
Screw size:- 45 mm
Max. swept volume:- 358 cm³
Injection shot weight in Polysterol:- 326 g/PS
Injection pressure:- 2.116 bar
Tie bar distance:- 630 x 630 mm
Mould height min.:- 250 mm
Opening stroke:- 600 mm
Microprocessor control:- Unilog B4
Screen text:- deutsch
Manual:- deutsch /german
Core pull:- 6 x
Motor output:- 55 kW
Total connection power:- 68,8 kW
Total weight:- 13.500 kg
Dimension:- L x W x H 6,5 x 2,1 x 2,3 m
