For Sale - UM - 17668 - Engel 300 Ton Injection Molding Machine

Specification

Reference Numbers

UM - 17668

Product

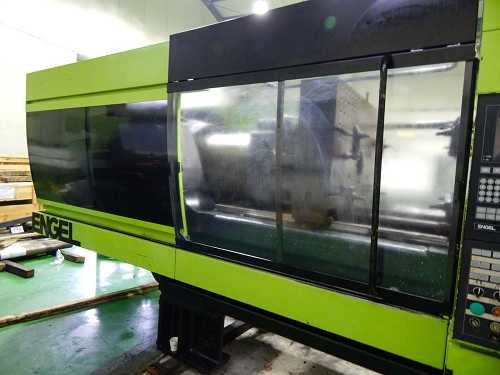

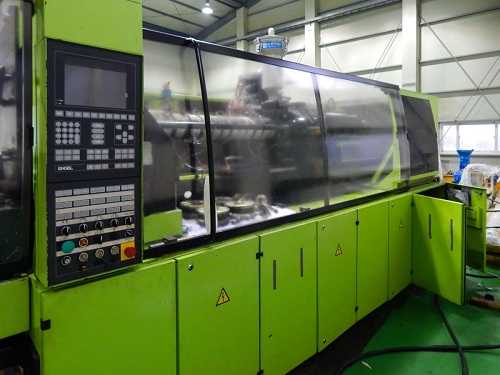

Engel 300 Ton Injection Molding Machine

Year Of Manufacture

2001

Location

Europe
Product Details

Screw diameter:- 60 mm
Shot weight max:- 702 g
Injection rate:- 284 cm³/s
Injection pressure:- 1.960 bar
Injection volume:- 763 cm³
Screw speed:- 226 rpm
Screw L/D ratio:- 20
Nozzle force max:- 110 kN
Nozzle stroke max:- 500 mm
Clamping force:- 3.000 kN
Mould opening stroke max:- 900 mm
Mould height min:- 400 mm
Daylight between platens max:- 1.300 mm
Platen size h:- 1.100 mm
Platen size v:- 1.100 mm
Ejector force:- 90 kN
Control type:- CC100
Oil tank capacity:- 870 l
Operating hours:- 62,420
Power: installed max:- 89 kW
Weight:- 20.000 kg
Dimensions (long x wide x high):- 7.200 x 2.000 x 2.500 mm
