For Sale - UM - 18187 - Godrej 315 Ton Injection Moulding Machine
Reference Numbers
UM - 18187Product

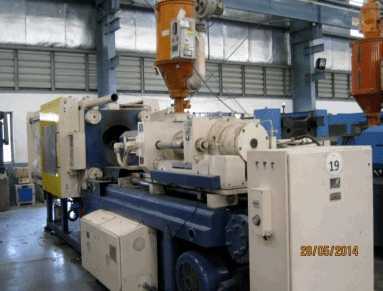

Godrej 315 Ton Injection Moulding MachineYear Of Manufacture
1998Location
India
Machine model:- 315T/007
Toggle type:- cross head connected to toggle link
Servo / non servo:- non servo

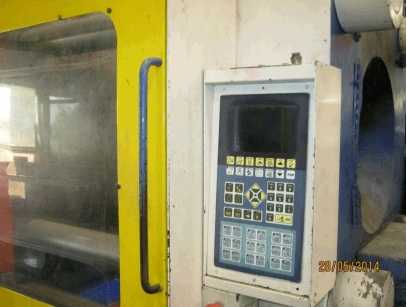

Controller make (original / replaced):- "retrofitted vignen"
Tie bar distance :- 610 x 610 mm
Screw dia:- 63 mm
Shot weight (gpps):- 712 gms
Clamp stroke:- 550 mm
Mold height (min / max):- 155 / 610 mm
Motor:- 24 kw
Heating:- 36.77 kw
Pump type:- fixvane pump
Injection unit
Injection capacity (gpps):- 712 gms
Theoretical displacement:- 748 cc or cm³
Clamp unit
Clamp force / lock force:- 315 ton
Maximum day light open:- 1118 mm
Maximum mould thickness :- 610 mm
Minimum mould thickness(height):- 152 mm
Dist. between. tie rods:- 610 x 610 mm
Platen size:- 927 x 927 mm
Lockting ring dia:- 150 mm
General
Heaters:- 24.0 kw
Pump electric motor :- 36.8 kw
Total connected load:- 60.8 kw
Hyd oil required:- 460 ltr
Machine size (l x w):- 7.6 x 2.1 x 2.6 meter
Machine weight(approx.):- 18 ton
