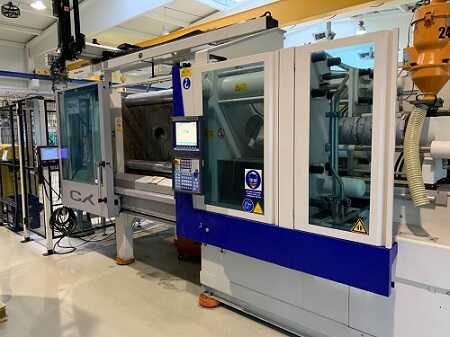

For Sale - UM - 18823 - Krauss Maffei 300 Ton Injection Moulding Machine

Specification

Reference Numbers

UM - 18823

Product

Krauss Maffei 300 Ton Injection Moulding Machine

Year Of Manufacture

2008

Location

Europe

Product Details

Clamping unit:
Clamping force: 300T
Platen Size HxV: 995 x 1050 mm
Daylight HxV: 630 x 630 mm
Tool opening way max. : 820 mm
Tool opening way min: 330 mm
Open wide: 1150 mm
Ejection: 200 mm

1st injection unit SP1000:
Screw dia: 50 mm
L/D ratio: 22
Stroke volume(displacement): 432 cm3
Injection pressure: 2304 bar
Shot weight, PS : 393g
Injection stream: 334 cm3/s

2nd injection unit
Screw dia: 40mm
L/D ratio: 25,2
Stroke volume(displacement): 251 cm3
Injection pressure: 2500 bar
Shot weight, PS : 229g
Injection stream: 153 cm3/s

Operating hours: in production - 30000 h
Total - 40000 h
