For Sale - UM - 18668 - Krauss Maffei KM 300 - 1400 Injection Molding Machine

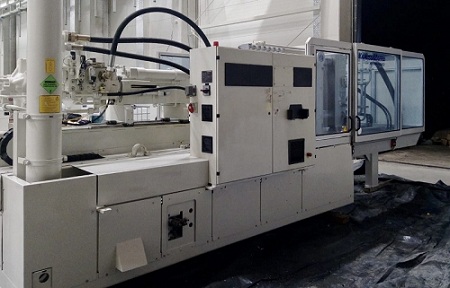

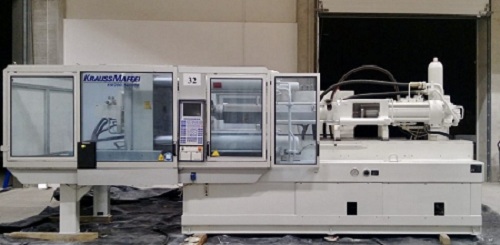

Krauss Maffei KM 300 - 1400 injection molding machine
Fully hydraulic closing system.
MC 4 control system with color monitor,
Integrated control panel
Along with the built-in disk drive.

Plasticizing system
Complete plasticizing system for thermoplastics
In the version with abrasive protection,
With 60mm screw diameter, with backflow preventer and open nozzle.

Technical Data:-
Closing unit:
Form clamping force:- 3000 KN
Mold opening force:- 160 KN
Movement force of the movable plate holding the mold
Opening :- 86 KN
Closing :- 68 KN

Mounting plate dimensions (hxv):995 x 1050 mm
Clearance between columns (hxv): 630 x 630 mm
Mold opening path:820 mm
Mold installation height:- 330 mm
Opening width:- 1150 mm
Ejector stroke:- 200 mm
Ejector force:- 58/28 KN

Injection unit:
Screw diameter: 60 mm
Injection pressure:- 2000 bar
Injection volume:- 679 cm3
Injection weight for PS:- 618 g
Injection stream:- 325 cm3 / s

Injection stream increased -
Injection molding machines of the C2 + 713 series cm3 / s

Injection unit:
Screw rotation speed,
Standard / additional equipment:- 368/453 rpm

Plasticisation stream at:
Standard screw speed g / s 65
Increased screw speed g / s 80

Electro-hydraulic equipment:
Pump motor rated power:- 45 kW
Heater installed power:19 kW
Number of cylinder heating zones: 5
Dry cycle time according to Euromap:- 1 / h 1350
Oil tank capacity:- 720 l

Dimensions and weight:
Net weight with the control cabinet:- 12.5 t
Dimensions of the place for foundation:(L x W x H):- 5.97 x 2.04 x 2.36 m
