For Sale - UM - 18337 - Arburg 130 Ton Injection Moulding Machine
Reference Numbers
UM - 18337Product

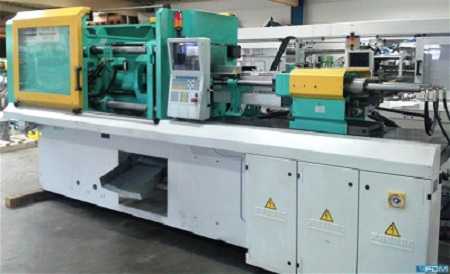

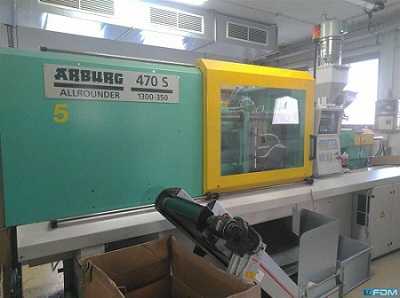

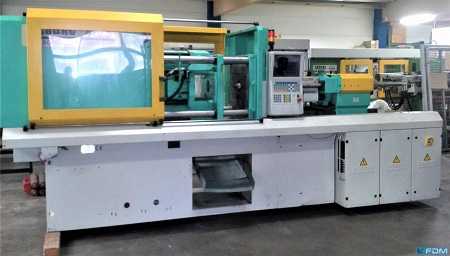

Arburg 130 Ton Injection Moulding MachineLocation
Europe
Screw size:40 mm
Screw size:40 mm
Injection shot weight in Polysterol:- 166 g/PS
Closing pressure:1300 kN
Daylight:470 x 470 mm
Opening stroke:575 mm
Mould height - Max./min.:275 mm
Control:- Selogica
Daylight between platens - max.:850 mm
Dimensions of the machine ca.:4,50 x 2,00 x 2,20 m m
Weight of the machine ca.:6,3 t
Total power requirement:33,4 kW
Description
S-version IV
With Selogica control
Technology step 2 - with 2 regulating pumps
Connection for mould blow unit with pressure reducer
Core pull
Interface for printer
Interface for colouring unit/dosiing unit
Interface for robot
With Arburg equipment packages number 2,3,5,6,7
This machine will be completely overhauled in our company according to fixed criteria (checklist) and can be tested after finishing in our company.
