For Sale - UM - 18237 - Engel Tie Bar Less Injection Moulding Machines

Specification

Reference Numbers

UM - 18237

Product

Engel Tie Bar Less Injection Moulding Machines

Year Of Manufacture

2002

Location

USA
Product Details

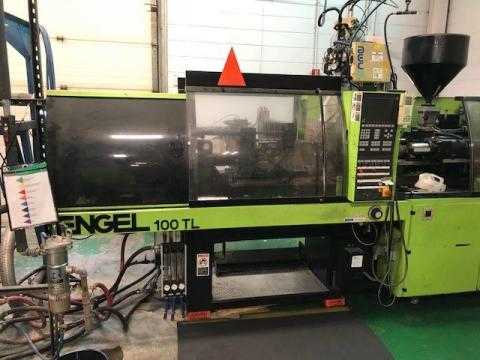

Engel Tie Bar Less Injection Moulding Machine
Tonnage:- 100 Ton
Shot size:- 6.5 OZ.
Model number:- ES100V330US
Type:- horizontal
Clamp:- hydraulic
Tie bar distance:- tiebarless inches x tiebarless inches
Platen size:- 27.95" inchesx 22.05" inches
Daylight min:- 9.84" inches
Daylight max:- 27.56" inches
Core pull sequences
Types of controls:- EC 100
Voltage :- 460
Dimensions:- 13.75' ftx 4.67' ftx 6.42' ft
Barrel & screw:- good
Hours:- 48,912
Material run:- TPR, HDPE glass filled

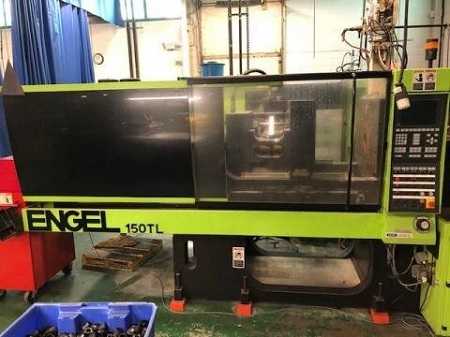

2) Engel Tie Bar Less Injection Moulding Machine
Tonnage:- 150 Ton
Shot size:- 12.7 OZ.
Model number:- V650/150US
Type:- horizontal
Clamp:- hydraulic
Tie bar distance:- tiebarless inches x tiebarless inches
Platen size:- 33.46" inchesx 27.56" inches
Daylight min:- 9.84" inches
Daylight max:- 33.36" inches
Core pull sequences
Types of controls:- EC 100 A03
Voltage:- 460
Dimensions:- 18.42' ftx 5.92' ftx 7.42' ft
Barrel & screw:- very good
Hours:- 30,094
Material run:- TPR, HDPE glass filled
